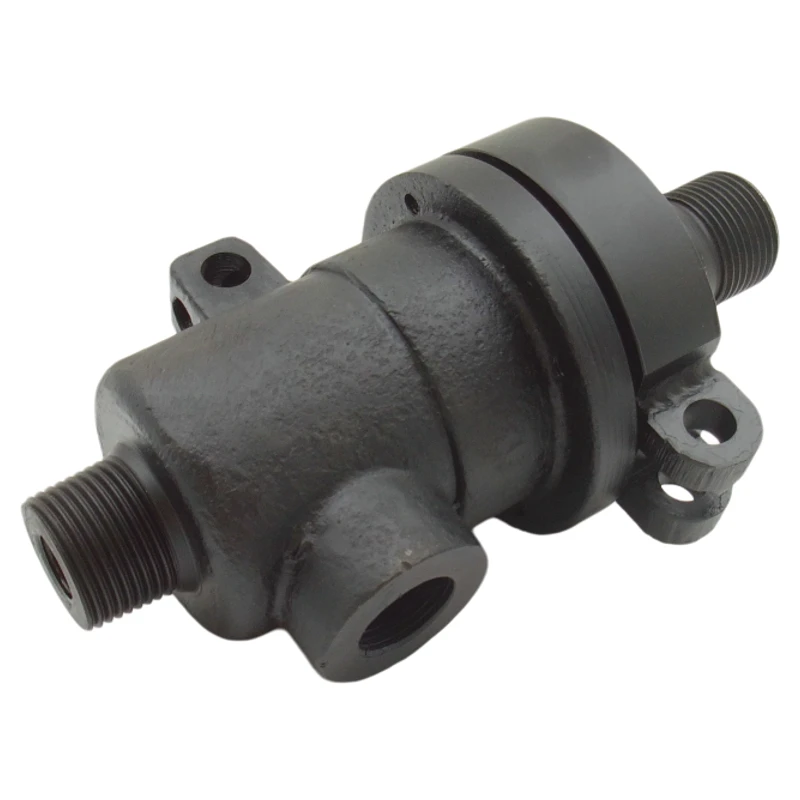

M 225 R Dej & Chav Rotary Joint
♦ M 225 R rotary joint yog tsim los rau kev hloov dej thiab chav.
♦ Ua los ntawm cov hlau cam khwb cia, nws boasts robust siab tsis kam thiab zoo heev poob siab absorbing.
♦ Dual -channel qauv.
♦ Kev ua haujlwm ruaj khov nyob rau hauv qhov kub ntawm -15 txog 160℃thiab siab mus txog 20 bar.
♦ Kev sib txuas ntawm axial thiab radial yog tsim los rau kev sib koom ua ke tsis muaj zog hauv kev lag luam ib puag ncig.
khoom kos duab
khoom parameter
| Technical Parameters | |
| Nruab nrab | Dej, Chav |
| Max. Kub | -15 ~ 160 degree |
| Max. Siab | 20 bar |
| Max. Ceev | 640 RPM (Dej); 320 RPM (Steam) |
| Qhov hnyav | 3.5kg ib |
cov khoom nta
-
Cam khwb cia hlau tsim rau superior siab kuj.
-
Zoo heev shock absorption.
-
Dual -channel tsim rau kev hloov pauv nruab nrab zoo.
-
Qhov zoo tshaj plaws rau kev siv tsawg - ceev.
-
Kev sib txuas: Axial: G3 / 8 "RH sab nraud xov; Radial: G3 / 4" xov sab hauv.
FAQ
Q:Koj puas txhawb customization?
A:Yog lawm, peb muab cov kws kho mob- ua cov kev daws teeb meem, suav nrog qhov ntev, cov khoom siv, thiab cov qauv sab hauv. Peb kuj muab kev pabcuam OEM thiab ODM. Hu rau peb pab neeg rau kev pab tshaj lij.
